Lamplight · Hayden Griffin

A design system for Home Assistant wall tablets, and six cards built on it.

Lamplight is written for screens that are read from across a room and tapped without looking closely: kitchen and bedroom tablets, often running View Assist. Things that are on glow like a lamp. Type is big, targets are few and large, and every page fits one screen with no scrolling.

Try the demo → All six cards run on a made-up home there, with a stand-in Home Assistant.

The design system

DESIGN.md is the full system: the tokens, type scale, layout, components and the rules behind them. A few of them:

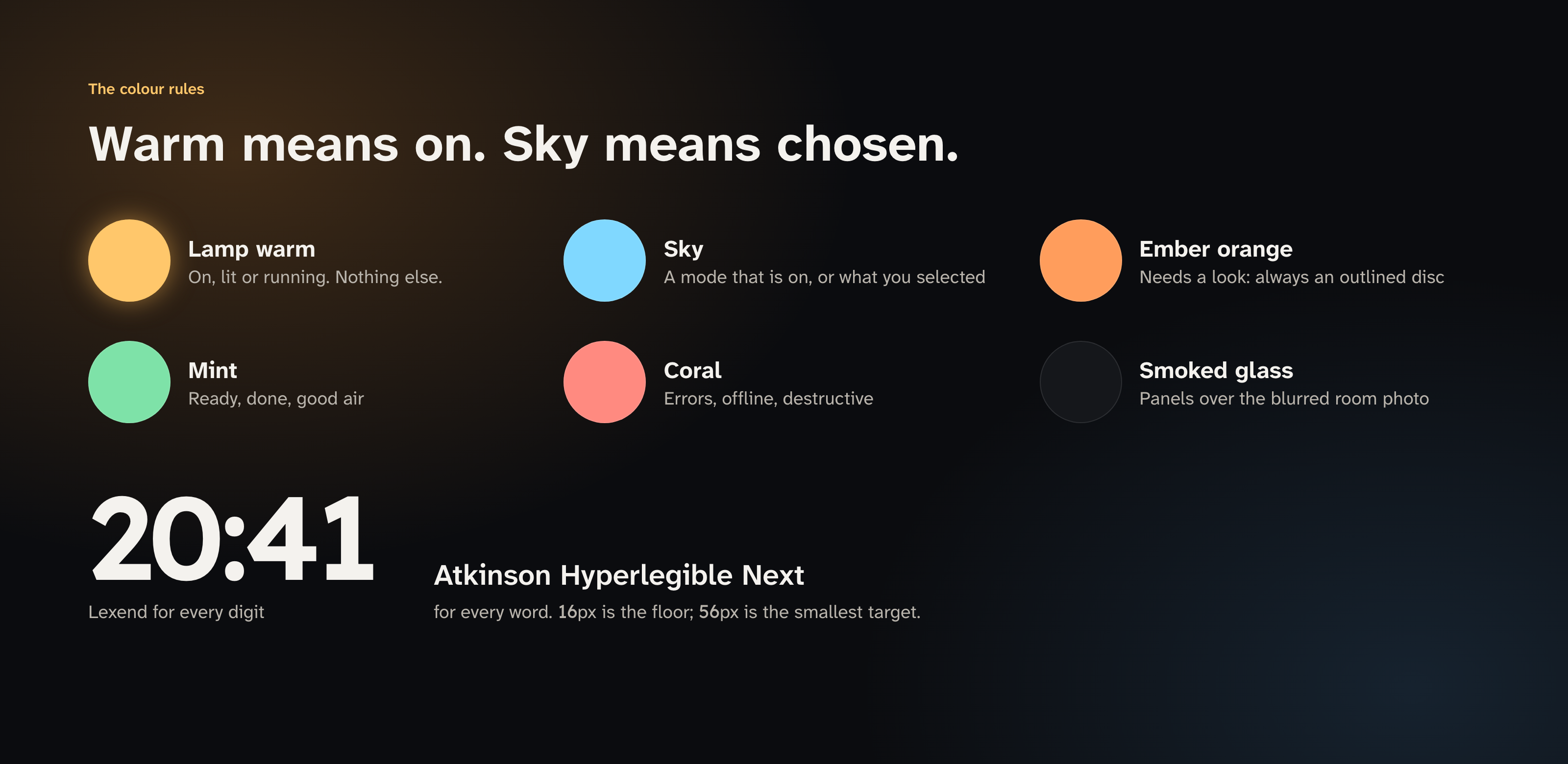

The Lamp Rule. Warm means on, lit or running, and nothing else. A filled, glowing disc always means on.
The Sky Rule. Sky blue marks a mode that is on, or what you selected. It never decorates.
The Outlined Warning Rule. A warning is an outlined orange disc, never a filled one, because filled means on.
The 16px Floor and the Control Floor. No text under 16px; no touch target under 56px; primary actions 64px.
The One Screen Rule. If a tablet page doesn't fit 788×492, cut content or move it into a sheet. Never shrink it.
The Lexend Digits Rule. Every digit is Lexend. Atkinson Hyperlegible's slashed zero reads as "Ø" from across a room.

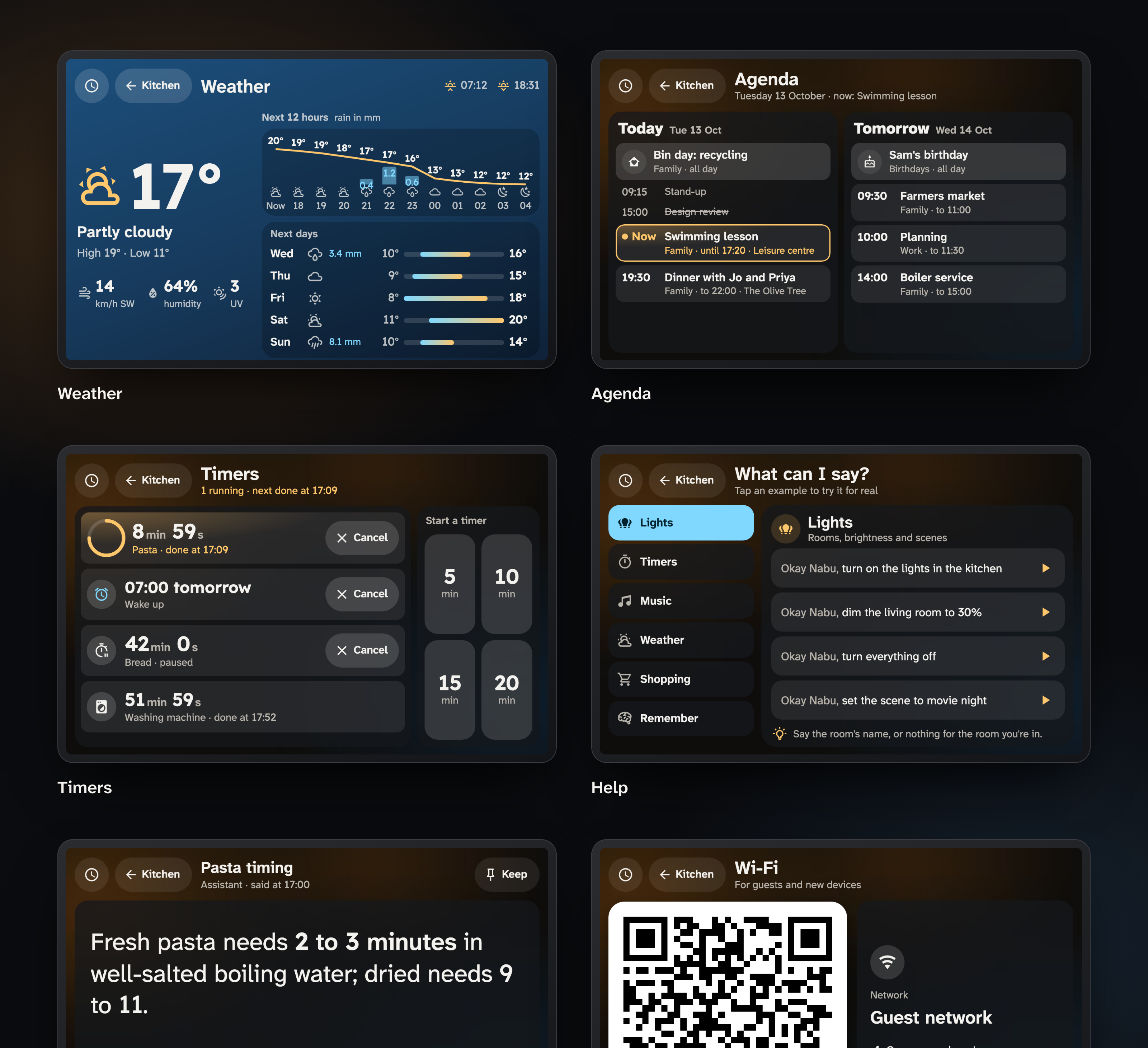

The cards

Card	What it shows
`lamplight-weather-card`	Now, the next 12 hours as a temperature line with rain bars, and five days of low–high bars. The page's sky follows the weather.
`lamplight-agenda-card`	Today and tomorrow from your calendars. What's on now glows, earlier events fade, cancelled ones are struck through.
`lamplight-timers-card`	View Assist timers with live countdown rings, paused timers, alarms, appliance timers, and quick-start buttons. Cancel has Undo.
`lamplight-help-card`	"What can I say?" A voice cheat-sheet where tapping an example runs it through your assistant and shows the reply.
`lamplight-info-card`	The assistant's last answer, auto-fitted as large as it will go, for View Assist's info, infopic and alert pages. Says "Didn't catch that" when it wasn't an answer.
`lamplight-wifi-card`	A guest Wi-Fi QR code big enough to scan from the sofa. The password lives only in the image.

Install

HACS: add https://github.com/HaydenGriffin/lamplight as a custom repository (category Dashboard), install Lamplight, and reload the browser.

Manually: copy everything in dist/ to <config>/www/lamplight/ and add /local/lamplight/lamplight.js as a dashboard resource of type JavaScript module.

The cards fill the screen, so give each one its own view in panel mode (or a View Assist view).

Configuration

Every card takes these optional keys:

nav:
  home: /dashboard-tablet/clock    # the round clock button; hidden without one
  back: /dashboard-tablet/home     # the back pill; without it, Back goes back in history
  back_label: Home
view_assist_sensor: sensor.viewassist_kitchen   # tablets running View Assist find their own
locale: en-GB                      # date and time format; defaults to Home Assistant's language

On a View Assist tablet the clock button goes to the device's home screen and navigation goes through View Assist.

Weather

type: custom:lamplight-weather-card
entity: weather.home

Agenda

type: custom:lamplight-agenda-card
calendars:
  calendar.family: { name: Family, icon: mdi:home-heart }
  calendar.work: { name: Work, icon: mdi:briefcase-outline }

Timers

type: custom:lamplight-timers-card
quick_minutes: [5, 10, 15, 20]
appliance_timers:
  - { entity: timer.washing_machine, name: Washing machine, icon: mdi:washing-machine }

Timers come from the tablet's View Assist sensor and are set and cancelled through View Assist. Paused timers show the time they have left. Cancelling a running timer offers Undo for 8 seconds, which sets it again for the time it had left; alarms, reminders and paused timers ask for a second tap instead. An appliance timer is any timer entity with a finishes_at attribute while it runs.

Help

type: custom:lamplight-help-card
agent_id: conversation.home_assistant
wake_phrase: Okay Nabu
rooms: { sensor.viewassist_kitchen: kitchen }   # fills {room} in examples
categories:
  - name: Lights
    icon: mdi:lightbulb-group
    hint: Rooms, brightness and scenes
    tip: Say the room's name, or nothing for the room you're in.
    examples:
      - say: turn on the lights in the {room}
      - say: turn everything off
        confirm: true          # asks for a second tap
      - say: remember that…
        tap: false             # shown, not run

run sends different text from what's shown, agent sends one example to another agent, and note adds a small line.

To stop taps running anything while you have visitors, point read_only_entity at an on/off entity. While it's on, the examples still show (as "Start with wake phrase, then say it") but tapping one does nothing:

read_only_entity: input_boolean.guest_mode

Info

type: custom:lamplight-info-card
show_image: true          # for View Assist's infopic view
wake_phrase: Okay Nabu    # optional: named in "Didn't catch that"

A short reply that isn't an answer ("Sorry, I couldn't understand that", the greeting after a bare wake word) shows as "Didn't catch that", with what it replied underneath. ?pic=1 in the page's address shows the image without show_image, and ?alert=1 shows View Assist's alert_data (its header, then line1 and line2), so one info view can stand in for View Assist's infopic and alert views.

Wi-Fi

type: custom:lamplight-wifi-card
qr: /local/guest/wifi.svg
ssid: Guest network

Make the QR image from WIFI:T:WPA;S:<network>;P:<password>;; with any QR generator.

Theming

The cards read their surfaces from --l-page, --l-panel and --l-photo (a background image shown blurred behind the panels), so a theme or a parent card can set them. --l-photo-show: 0 gives the solid variant.

When --l-photo is one image from your Home Assistant (or a site that sends CORS headers), each card blurs it once into a small image and shows that, so the tablet doesn't run a live blur over the whole page. Gradients and other images keep the live blur. Cards set --l-photo-soft and --l-photo-filter on themselves for this; you don't need to.

The theme

themes/lamplight.yaml puts Home Assistant's own header, sidebar and stock cards in the Lamplight colours, so the rest of a dashboard matches the cards. The cards don't need it. Copy it to <config>/themes/, make sure configuration.yaml loads that folder:

frontend:
  themes: !include_dir_merge_named themes

then run Home Assistant Core: Reload themes (or restart) and pick Lamplight in your profile or as a dashboard view's theme. A theme can also set the cards' surfaces, for example l-photo: 'url("/local/photos/kitchen.jpg")'.

Building on Lamplight

src/ is plain ES modules, and dist/lamplight.js is an ES module with the same exports, so your own cards can share the design system instead of copying it.

import { LamplightCard, define, esc } from '/hacsfiles/lamplight/lamplight.js';  // or src/core.js in your own bundle

class PantryCard extends LamplightCard {
  defaults() { return { entity: 'sensor.pantry' }; }
  build() {
    this.built = true;
    this.shell('Pantry', '<main class="list"></main>', { sub: 'What we have' });
  }
  update() {
    const items = this.st(this.config.entity)?.attributes?.items || [];
    this.shadowRoot.querySelector('.list').innerHTML = items.map((i) => `<p>${esc(i)}</p>`).join('');
  }
  styles() { return '.list{flex:1;overflow:auto;background:var(--panel);border-radius:var(--r-tile);padding:16px}'; }
}
define('pantry-card', PantryCard, 'Pantry', 'What we have in.');

Export	What it is
`LamplightCard`	The base class: `setConfig` (merged over `defaults()`), `hass`, `shell(title, mainHtml, {sub, extra})` (header with clock and Back, the card's main, a toast; it also fits the card to the screen and pre-blurs the photo), `build()` / `update()` / `styles()` / `act(name, el)` to override, `retry()` (the Retry button) and `resized()` (after the card is fitted), `st(id)`, `call(domain, service, data, doneText, undo)`, `toast(text, error, ms, undo)` and `hideToast()`, `setSub(text, cls)`, `hhmm(date)`, navigation (`goHome`, `goBack`, `window.lamplightNav`, `nav` config).
`define(tag, cls, name, description)`	Registers the element once (a second load is a no-op) and lists it in the card picker once. Returns the class registered under `tag`.
`TOKENS`, `BASE_CSS`	The CSS custom properties (The One Token Rule, DESIGN.md) and the shared page, header, button and toast styles that `shell()` puts in each card's shadow root.
`esc(value)`, `cap(text)`, `dayStart(date)`	HTML escaping for anything you interpolate, capitalising, and local midnight of a date.
`loadState({loading, error, count})`, `failedHtml(what)`	A load state (`loading`, `failed`, `empty` or `ready`; something to show beats an error) and the one "Couldn't load what" block with Retry (DESIGN.md, Load states).
`preblur(url, look?, width?)`, `PHOTO_LOOK`	The page photo blurred once into a small image (a promise of a data URL, or null), and the look it's blurred to. Cards use it on their own `--l-photo`.
`TOAST_MS`, `UNDO_MS`	How long a toast stays, and a toast with Undo.
`registerFonts(base?)`, `fontBase()`	The Lamplight Text and Lexend faces, registered on the document once when the core loads.
`VERSION`	This release.
`LamplightWeatherCard` … `LamplightWifiCard`	The six cards' classes (each registers itself when its module loads).

Import src/core.js for the core alone (no cards registered), or src/cards/<name>.js for one card.

Page fit. Each card fills the screen below whatever is above it (Home Assistant's header, say), measured with one shared ResizeObserver. If your dashboard moves things without a resize, dispatch window.dispatchEvent(new Event('lamplight-layout')).

Fonts. The core looks for ahn-latin.woff2, ahn-latin-ext.woff2 and lexend-latin.woff2 next to the file it runs from (dist/ for the HACS bundle). If your bundle puts them somewhere else, set window.lamplightFontBase (ending in /) before it loads, for example '/local/fonts/'.

Development

Edit src/, then npm ci (once: esbuild, pinned) and node scripts/build.mjs to rebuild dist/lamplight.js; CI checks the committed bundle is up to date. npm test runs the module and card tests (node, no browser). For the demo, serve the repo root (python3 -m http.server) and open /demo/, which also shows a few other states (a forecast that won't load, read-only Help, a misfire); npm run demo-icons regenerates its icon set after you add an icon. tools/showcase.cjs renders the images above.

Changes are listed in CHANGELOG.md.

Support

Lamplight is free and open source. If it made your wall tablets better, you can buy me a coffee. Bug reports and pull requests are just as welcome.

Licence

MIT. The bundled fonts are SIL OFL 1.1; see NOTICE.
