House for webOS · Hayden Griffin

A Home Assistant panel for LG TVs, built to be read from the sofa and driven with the remote. It shows the lights, the TV's sources, what's playing and who's home, and every Sunday it can play a Wrapped-style recap of the week at home.

Try the demo in a browser → It runs on made-up data. Use the arrow keys and Enter; add &recap to the URL for the week recap.

What it does

One screen, the whole house. Light tiles with brightness, any number of action tiles (scripts, scenes, any Home Assistant action), TV sources with the current one lit, the speakers with play, skip and a playlist button, and a chip for each person with the room they're in.
Made for a remote. Arrows move by on-screen geometry, so the nearest control in that direction always gets focus. OK presses, Back closes, the Magic Remote pointer works, and it closes itself after a minute idle. A door left open and the next calendar event show at the top.
Live. It holds one websocket to Home Assistant and subscribes to only the entities it shows, using the compressed subscribe_entities stream, so a 2021 TV keeps up.

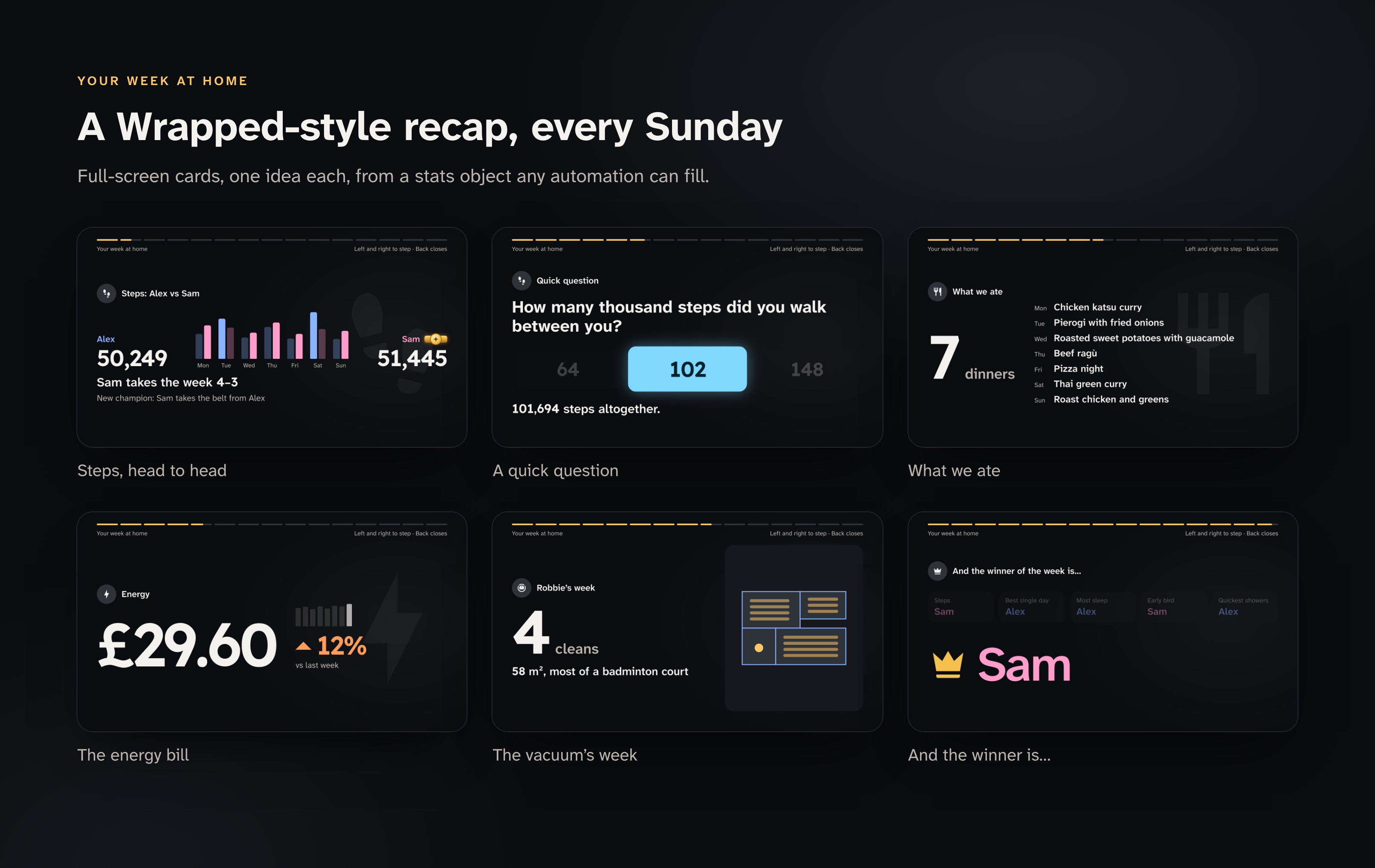

Your week at home. Full-screen cards with count-ups, paired bar charts, a quiz, a guess-the-week reveal and a winner with a drumroll. The cards come from one JSON object that any automation can produce; see docs/recap-stats.md. An automation can start it on the TV with nobody at the remote.

Requirements

An LG TV running webOS. It was built on a 2021 C1 (webOS 6, Chromium 79), so the code is ES5 with no build step.
The TV in Developer Mode and the webOS CLI (ares-*) on your computer.
A Home Assistant user for the TV. Make it non-admin, ideally "local access only", and create a long-lived access token for it from its profile page.

Status: an earlier private build of this app runs every day on a rooted 2021 C1. Versions 1.1 and 1.2 have only run in the browser demo and the tests so far. The public package, ares-install, the Developer Mode SSH push and launching by io.github.haydengriffin.house haven't been tried on a TV yet. Reports either way are very welcome.

Install

The package never contains your config or token, so the same IPK works for every home and is safe to share. The config goes onto the TV separately, next to the installed app.

Build the package and install it on the TV:

python3 tools/package.py
ares-setup-device            # once, to add the TV
ares-install -d <tv> dist/io.github.haydengriffin.house_1.2.0_all.ipk

Copy config.example.json to config.json and fill in the websocket URL, the token and your entities. Everything except url and token is optional; leave out a section and its panel disappears. --token-file keeps the token in its own file instead.
Put the config on the TV over SSH, then open House:
```
python3 tools/push_config.py config.json --ssh root@<tv>                                  # rooted TV
python3 tools/push_config.py config.json --ssh "-p 9922 -i ~/.ssh/tv_webos prisoner@<tv>"   # Developer Mode
```
It writes config.js into the app's folder through SSH's stdin, so the token never appears in a command line. Reinstalling the IPK removes it, so push the config again after every install. Whether Developer Mode's SSH user may write into the app folder depends on the firmware.

To open House quickly, pin it to the TV's home row or put it on a Quick Access number. Home Assistant can also open it with the LG webOS integration's media_player.select_source, or webostv.command with system.launcher/launch and {"id": "io.github.haydengriffin.house"}.

Developer Mode sessions run out unless they're extended; the Developer Mode app on the TV shows the time left.

Configuration

Key	What it is
`url`, `token`	`ws://<home assistant>:8123/api/websocket` and the TV user's token.
`title`, `locale`, `idle_seconds`	The heading, the date and time format (e.g. `en-GB`), and the auto-close delay.
`demo`	`true` runs on the demo states with no Home Assistant, as `?demo` in the URL does.
`lights`	`[{ name, entity, icon?, on?, off? }]`. A press toggles the entity. `on` and `off` replace the state text ("On · 60%", "Off").
`tiles`	`[{ name, sub?, icon?, toast?, entity?, on?, off?, action?, confirm?, visible? }]`. `action` is `{ service: "domain.service", data?, target? }`; with only `entity`, a press toggles it. `sub` shows while the entity is off; `on` and `off` work as on lights. `confirm: true` (or the armed label) makes it a two-press action: the first press arms it red for 5 s. `visible: { entity, states }` shows it only while the entity is in one of those states.
`door`, `door_name`	A `binary_sensor`; a chip appears while it's on, with how long for. `door_name` is the chip's text (default "Door open").
`glance`	Header chips: `[{ entity, text?, icon?, attribute?, hide?, hours?, within_days? }]`. `text` takes `{value}`, `{attr.x}` and `{day}` (the value read as a date: today, tomorrow or the weekday), e.g. `"Tonight · {value}"`. A chip shows only while there's something to say.
`quick`	Actions that lead the lights grid and take the first focus, e.g. Pause and Lights up while something plays. Same shape as `tiles`.
`footer`	Pill buttons after This week, same shape as `tiles`, e.g. Everything off.
`calendars`	Calendar entities for the "Next" line.
`tv`	`{ title?, source_sensor?, sources: [{ name, icon?, action }], wide? }`. The source whose `name` matches the sensor's state is lit; the sensor's `line` attribute, if any, shows beside the title.
`music`	`{ title?, player, extra?, toggle? }`. `extra` is a pill button with an `action`; `toggle` is a switch row, `{ name, entity, icon?, on?, off?, action_on?, action_off? }`, for an `input_boolean`: `on`/`off` label its states and `action_on`/`action_off` run instead of toggling it.
`people`	`[{ name, person, room? }]`. `room` is any sensor whose state is the room name.
`recap`	`{ stats, attribute?, cue?, done?, idle_minutes?, ask?, tv?, vacuum_map? }`. `done` is an action called with `reason` when a recap ends that the cue started, or that began while the cue script was running. `tv` is the TV's `media_player`, whose history gives the TV hours when the stats have none. Stats up to six days old that nobody has played on this TV are offered on the home screen ("Your week at home is ready") unless `ask` is false. See `docs/recap-stats.md`.

Icons are Material Design Icons names in camelCase, from the set in app/icons.js; add any path you need there.

Development

Open app/index.html?demo in Chrome. The layout is fixed at 1920×1080, the TV's resolution; in a smaller window the demo scales to fit. app/demo.js holds the demo home and the full recap stats. The README images are rendered from the demo by tools/showcase. To try it against your own Home Assistant, write the config into the app folder with python3 tools/push_config.py config.json --out app/config.js (git ignores it, and the package leaves it out). Tests: python3 -m unittest discover -s tests and node --test; lint: npx --yes eslint@9 app.

Support

House for webOS is free and open source. If it made your evenings on the sofa better, you can buy me a coffee. Bug reports and pull requests are just as welcome.

Licence

MIT. Bundled icons are Apache 2.0 and the fonts are SIL OFL 1.1; see NOTICE.
